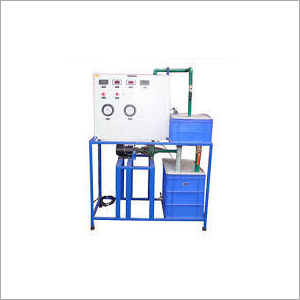

Centrifugal Pump Test Rig

Centrifugal Pump Test Rig
Centrifugal Pump Test Rig
Product Code : 40
Product Description

Backed by sharp business expertise and profound industrial understanding, we are engaged in manufacturing and exporting Centrifugal Pump Test Rig. These rigs are used for measuring tank & pipe fittings for closed loop water circulation. We use premium grade materials to manufacture these rigs under the firm direction of the expert professionals. We can make our Centrifugal Pump Test Rig available for the clients in different customized specifications as per their requirements.

Features:



  • Robust construction

  • Accurate calibration

  • High efficiency



Further Details:



The setup is designed to study theperformance of centrifugal pump.

Set up consists of a centrifugal pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop water circulation. Pressure and Vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement.

The flow rate of water is measured using measuring tank and stop watch provided.

EXPERIMENTS:

To determine overall efficiency and pump efficiency of the centrifugal pump.

To plot Head vs. Discharge, Pump efficiency vs. Discharge

FEATURES:

Closed loop water circulation

Compact & stand alone set up

Stainless Steel tanks and wetted parts

Superb Painted structure

Simple to operate & maintain

UTILITIES REQUIRED:

Electric supply             Provide 230 +/- 10 VAC, 50 Hz, single phase electric supply with proper earthing. (Neutral                   Earthvoltage  less  than 5 VAC.) 5A, three pin socket with switch for pump.

Water supply                     Tap water connection, Distilled water @ 80 liters (optional)

TECHNICAL DETAILS:

Product Centrifugal Pump Test Rig

Product code HML-01

Pump Capacity 1 HP Speed 2800 RPM (max.), Head 12m(max.),Make Kirloskar

Drive AC : AC motor with step cone pulley arrangement for 3 prefixed speed

         DC : DC motor with DC drive along with non-contact type digital RPM indicator

Supply Tank Capacity 120 Ltrs. MOC SS

Measuring Tank Capacity 75 Ltrs. MOC SS fitted with Piezometer Tube & scale

Piping GI / PVC

Stop Watch Electronic

Control Panel With required electrical instrumentation

Overall Dimensions
